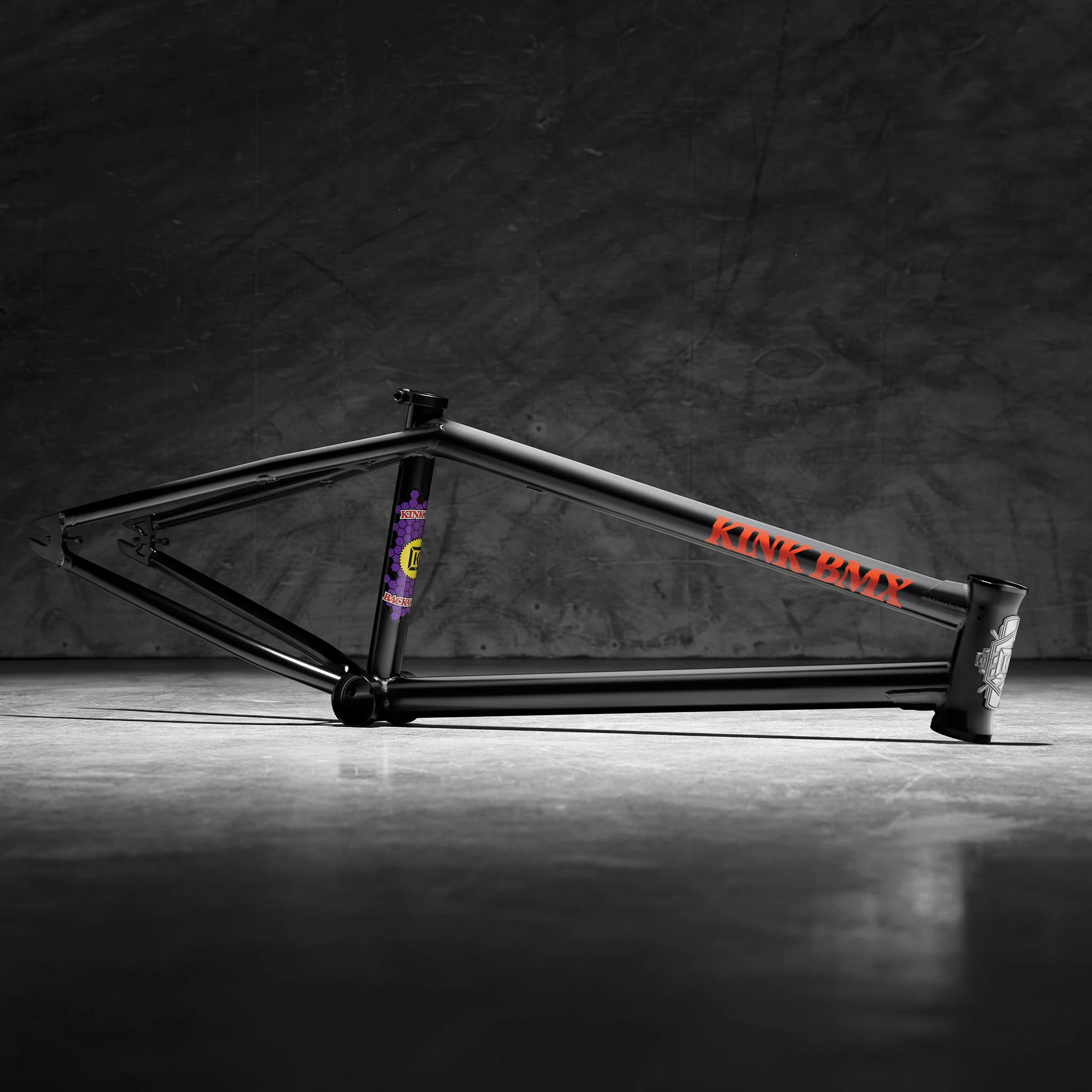

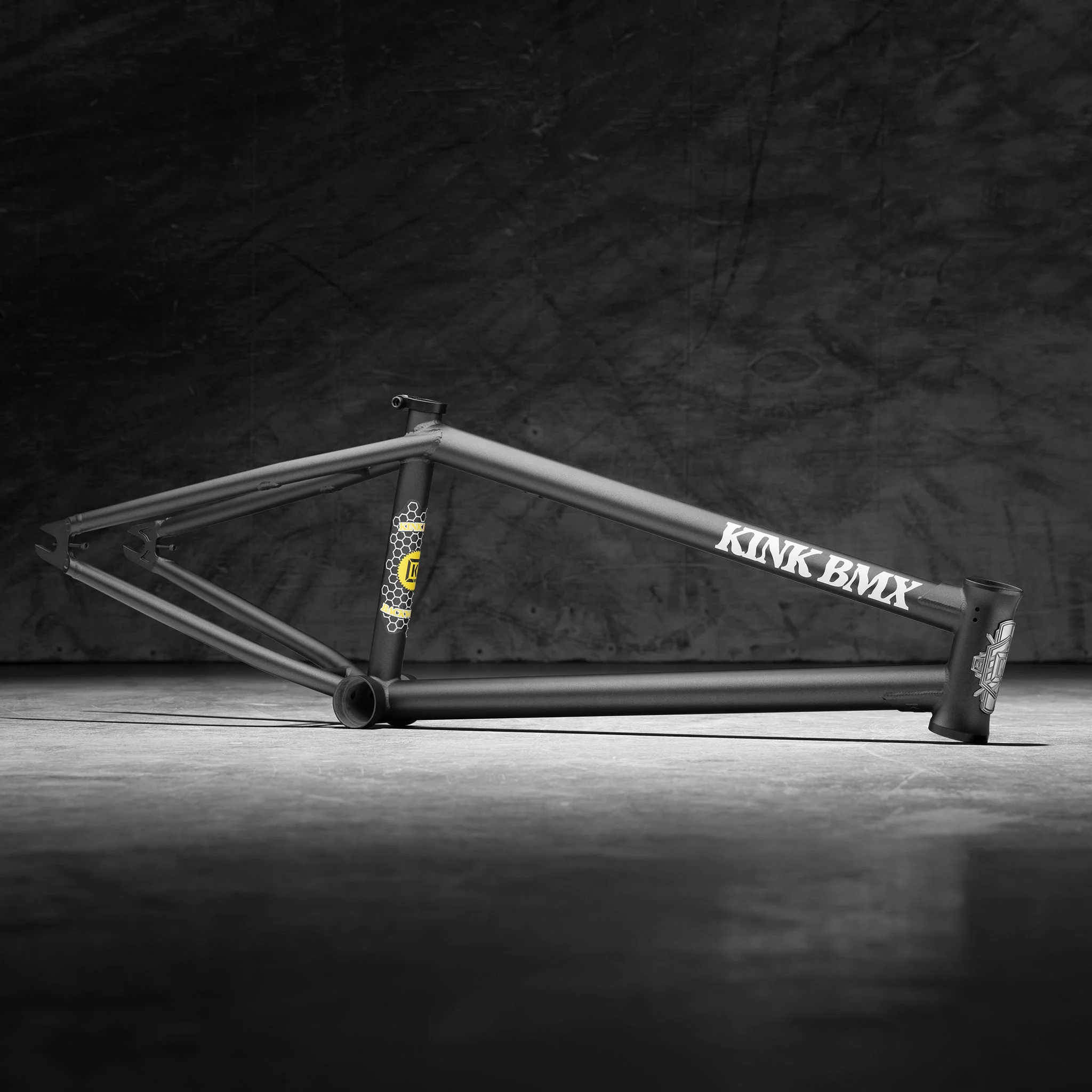

Classic and timeless design is what the Backwoods frame is all about. Built for the trails, but just as ready to ride at the park or in the streets. The narrow toptube and downtube both feature gussets, so the frame can maintain it’s classic look without compromising on strength. The tapered rear triangle tubing looks sleek but maintains its stiffness where it needs to. Included Kink Master Clamp features a 5mm/6mm combo bolt that makes adjustment super convenient, and the K-Brick headtube badge really finishes off the look. Integrated chain tensioners, removable brake mounts and big tire clearance are just a few of the other features for modern day conveniences and compatibility.

Seatstay Bridge

The Backwoods frame features a straight tube seatstay bridge, for a clean and classic look.

Dropout and Tensioners

Investment cast dropouts feature a clean look with integrated chain tensioners to keep your wheel in place.

Headtube and Gussets

Featuring full gussets both top and bottom and a custom brass K-Brick headtube badge.

Geometry

Toptube Sizes	20.75”, 21”, 21.25”, 21.5”
Chainstay Length	13.5" Slammed
Bottom Bracket Height	11.6"
Standover Height	9"
Headtube Angle	74.5°
Seattube Angle	71°
Headtube Height	4.6"

Tech Spec

Material	100% Seamless Sanko 4130 Chromoly Tubing
Headtube	Integrated Campy Spec
Dropouts	Investment Cast with Integrated Chain Tensioners
Bottom Bracket	Internally and Externally Machined Mid Size BB
Braking	Removable Through-Bolt Brake Mount System
Particulars	Toptube and Downtube Gussets Wide Stays for Big Tire Clearance Includes Kink Master Clamp Seat Clamp Tapered Seatstay and Chainstay Tubes Simple Straight Seatstay and Chainstay Bridges K-Brick Headtube Badge
Weight	4lb 15oz (20.75")

Frames

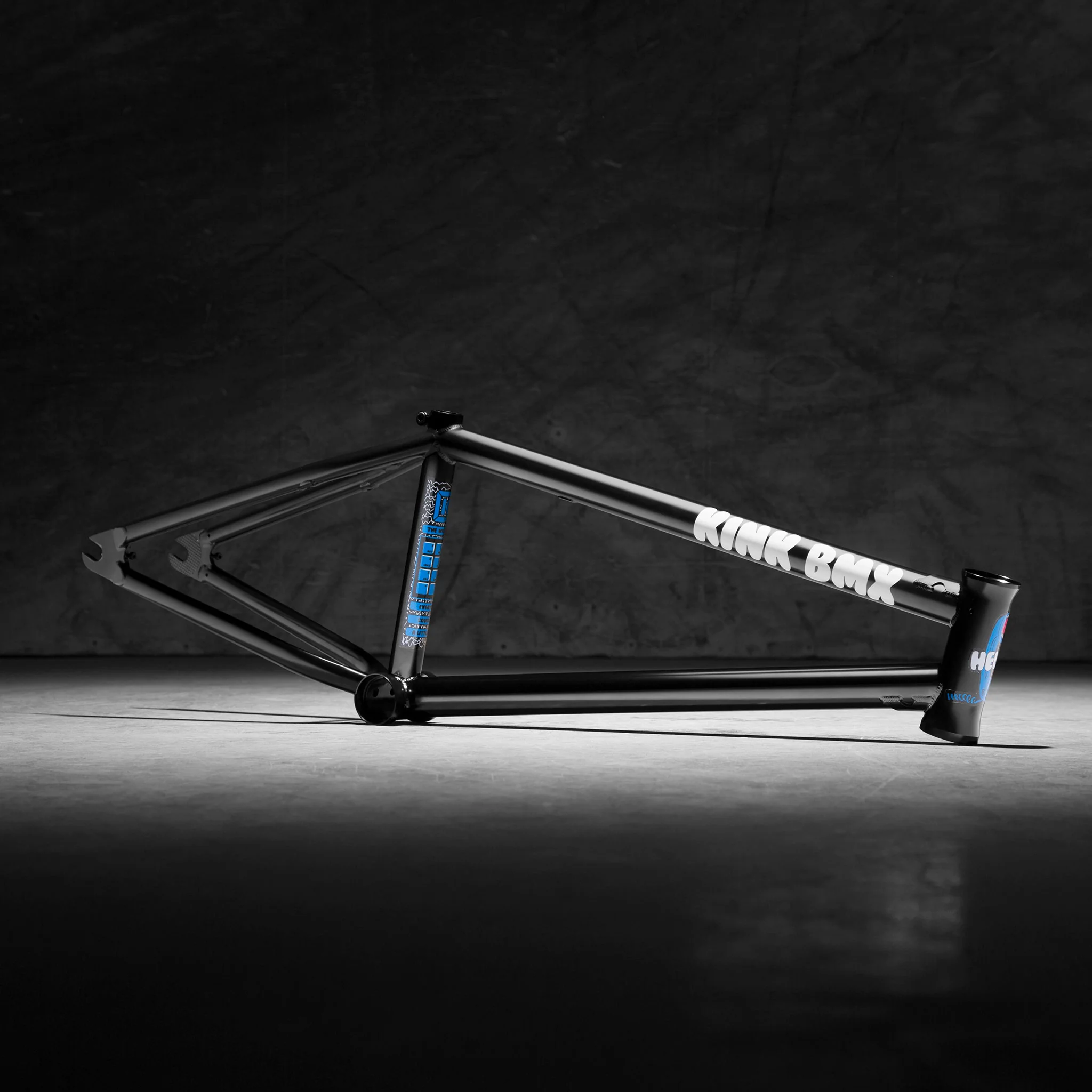

Williams Frame

Backwoods Frame

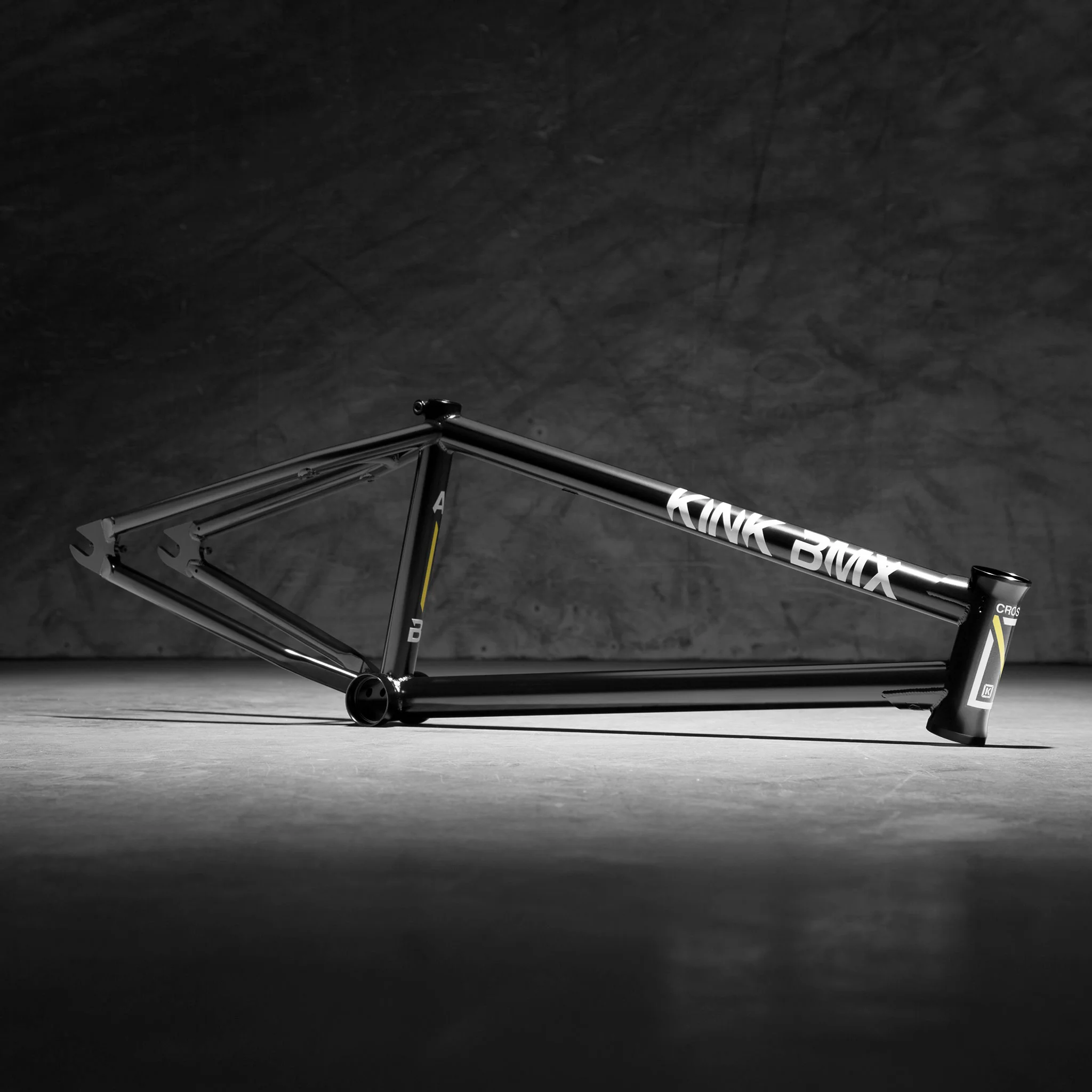

Crosscut Frame

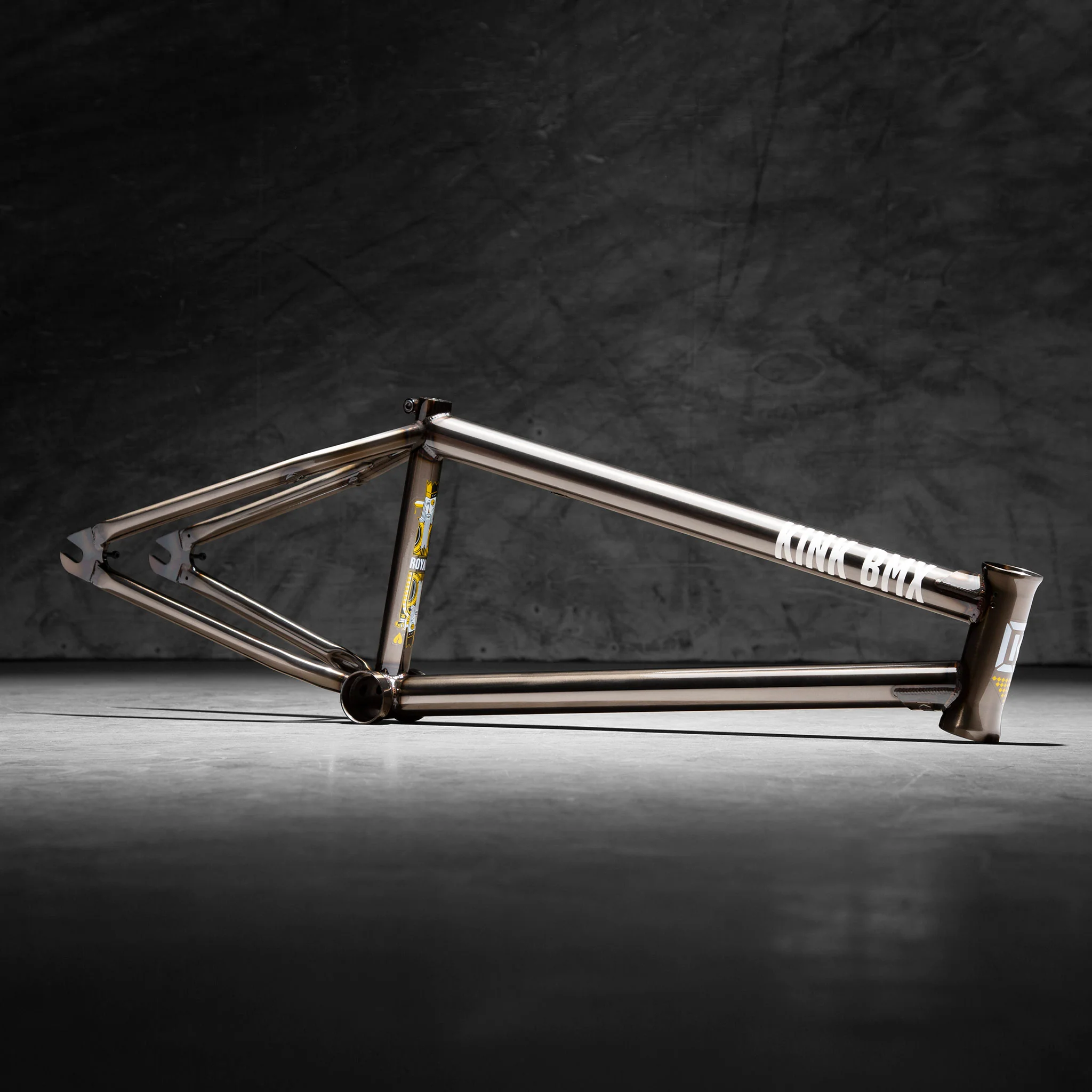

Royale Frame

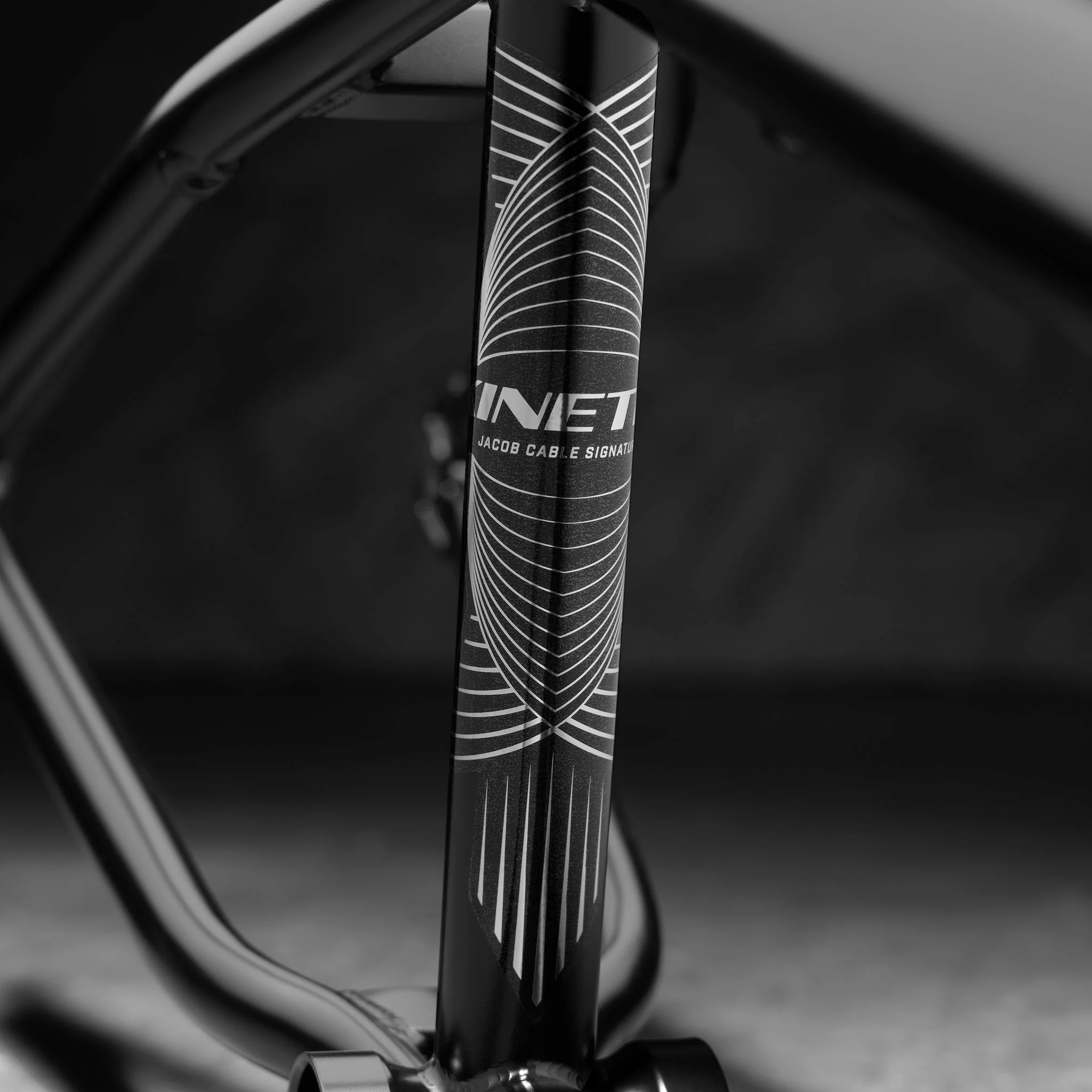

Kinetic Frame

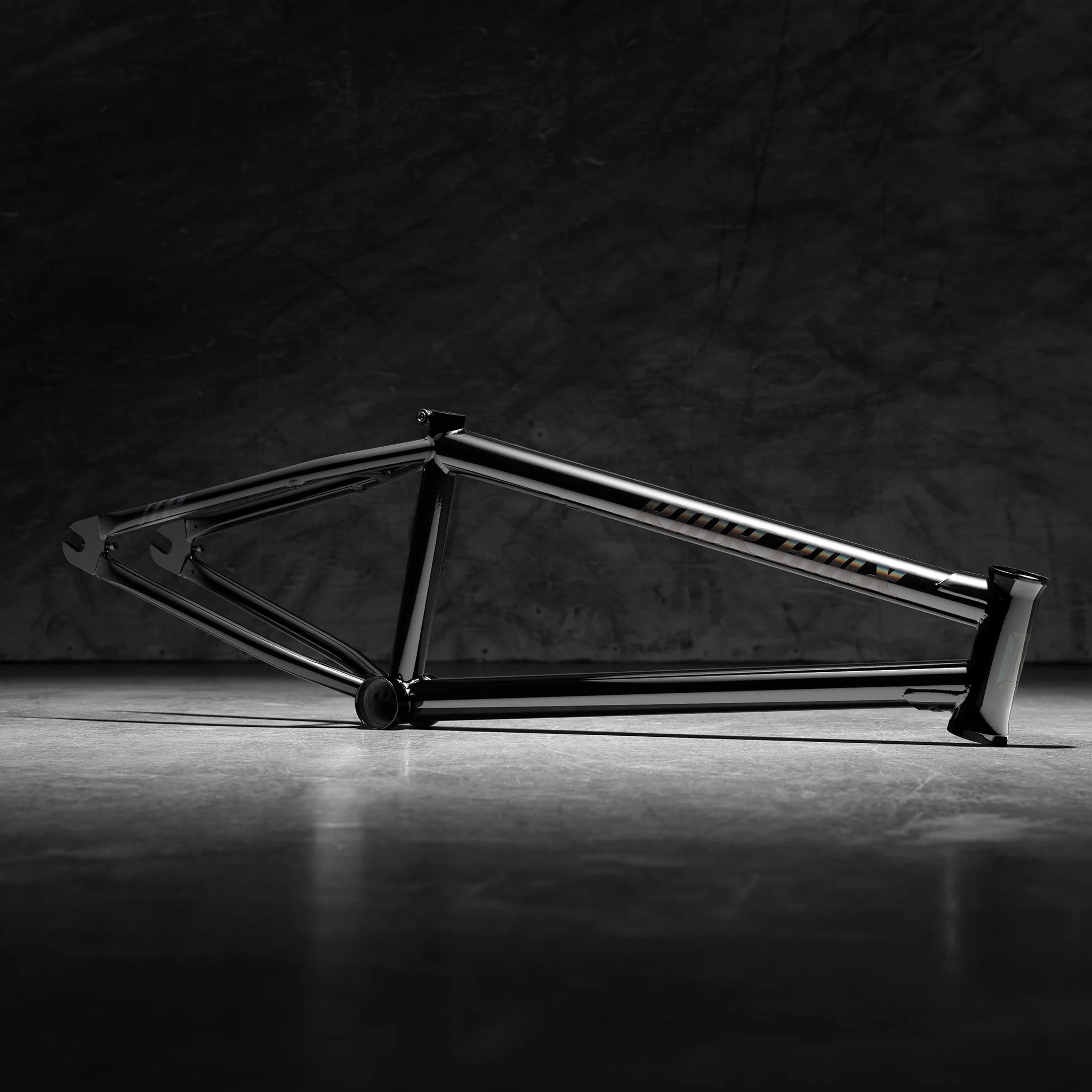

Prophet Frame
